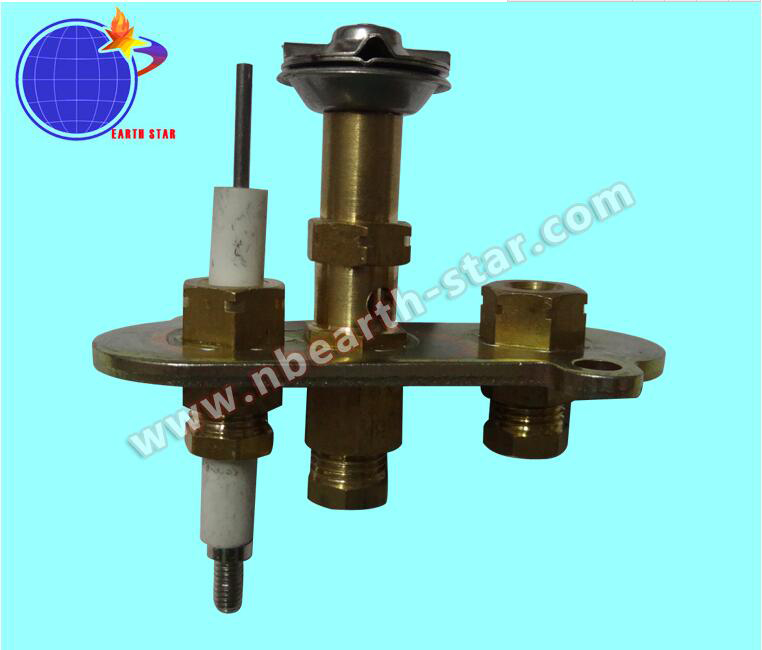

Gas water heater pilot burner parts

Gas water heater pilot burner parts

Product number:ESOD-014

Quick Overview: Working principle ODS use thermocouple component as a sensor to search the temperature of pilot flame in order to drive the electromagnetic valve, when the space is hypoxia(O-17%~19%),the flame temperature is under 400°C,there is not enough potential to open the valve ,so then the valve will be closed to keep safe.

Send Inquiry

PDF DownLoad

Product Description

Main function

    To ignite the main burner without deflagration, to stabilize the flame of main burner, to detect  flame normality , and to reignite or cut off the energy source when the flame is put out by external factors.

Technical parameter

Heating characteristic:  ≥12mV (within 20s at 650°C)
Cooling characteristic: ≤1.5mV(within 60s)
Range of length: 150mm(5.9inch)~ 1800mm(71inch)
Range of resistance: (10~50)±3 mΩ

Maximum operating temperatures:
Thermocouple Tip:750ºC / 1382°F
Thermocouple Wire:180ºC / 356°F
Cold Junction:150 ºC / 302°F

Injector(Burner):750ºC / 1382°F
