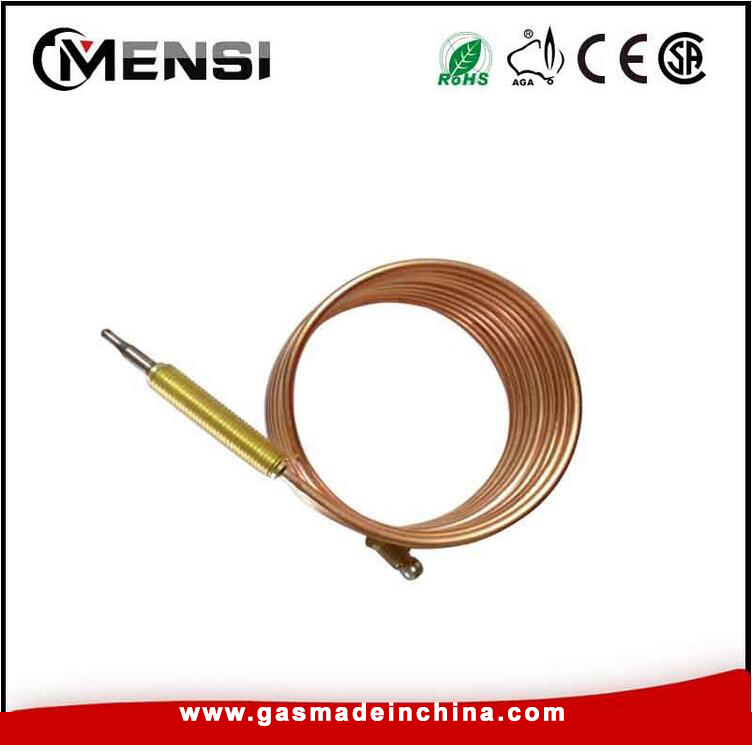

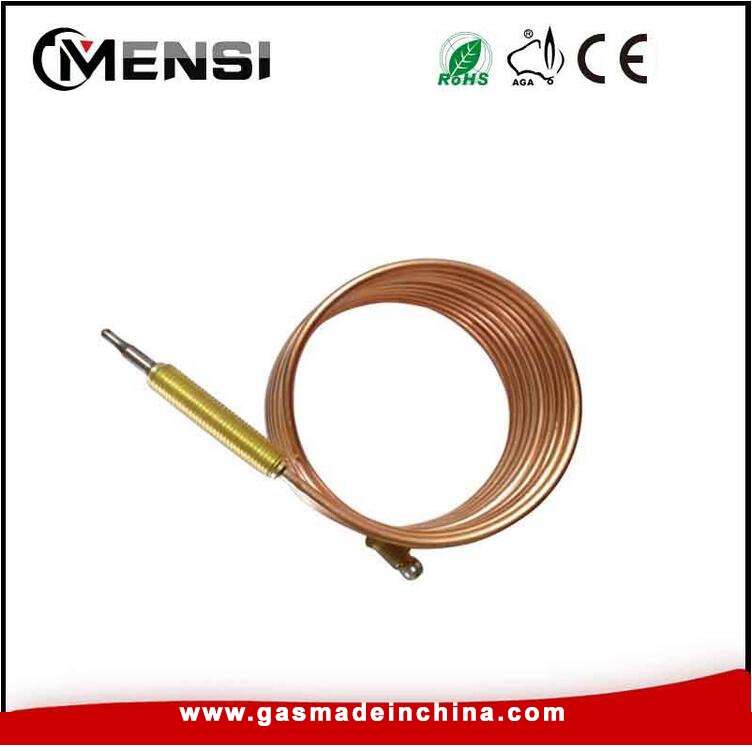

Copper thermocouple for gas stove
Product number:ESTH-012
Quick Overview: A thermocouple is an electrical device consisting of two different conductors forming electrical junctions at differing temperatures. A thermocouple produces a temperature-dependent voltage as a result of the thermoelectric effect, and this voltage can be interpreted to measure temperature. Thermocouples are a widely used type of temperature sensor.
Send Inquiry
PDF DownLoad
Product Description
Usage and Specification:
(1) Thermal potential
·heat characters: the temperature of thermocouple on flame is 600-700 and the heat potential should≥20mv
·cool characters: the temperature of thermocouple on flame is 600-700. The heat potential should be≤1.5mv when 1.5min if it heated for 5min and then cut off the power.
·work temperture: the top temperature is lower than 700 and the other parts higher than 125
(2) Inner resistance
·accord to its type and length and the tolerance is in ±10% as is requested.
(3)Length: according to request of customers
Product name: Gas stove thermocouple M8*1
(1) Thermal potential
·heat characters: the temperature of thermocouple on flame is 600-700 and the heat potential should≥20mv
·cool characters: the temperature of thermocouple on flame is 600-700. The heat potential should be≤1.5mv when 1.5min if it heated for 5min and then cut off the power.
·work temperture: the top temperature is lower than 700 and the other parts higher than 125
(2) Inner resistance
·accord to its type and length and the tolerance is in ±10% as is requested.
(3)Length: according to request of customers
(4)Forehead&terminal: according to request of customers
Item No:ESTH-012
Application country: AllProduct name: Gas stove thermocouple M8*1
Applicable gas families:LPG/propane/butane
