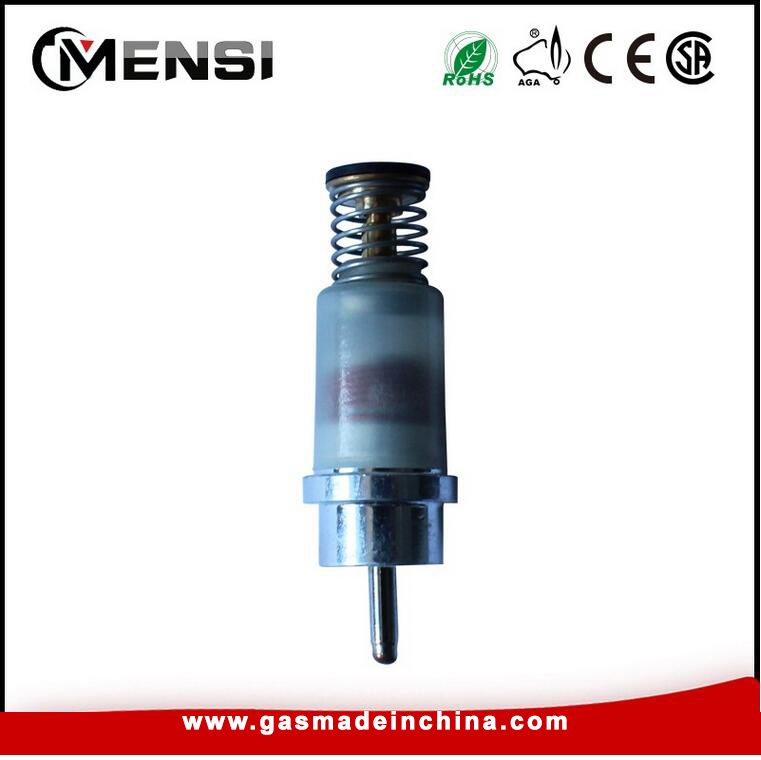

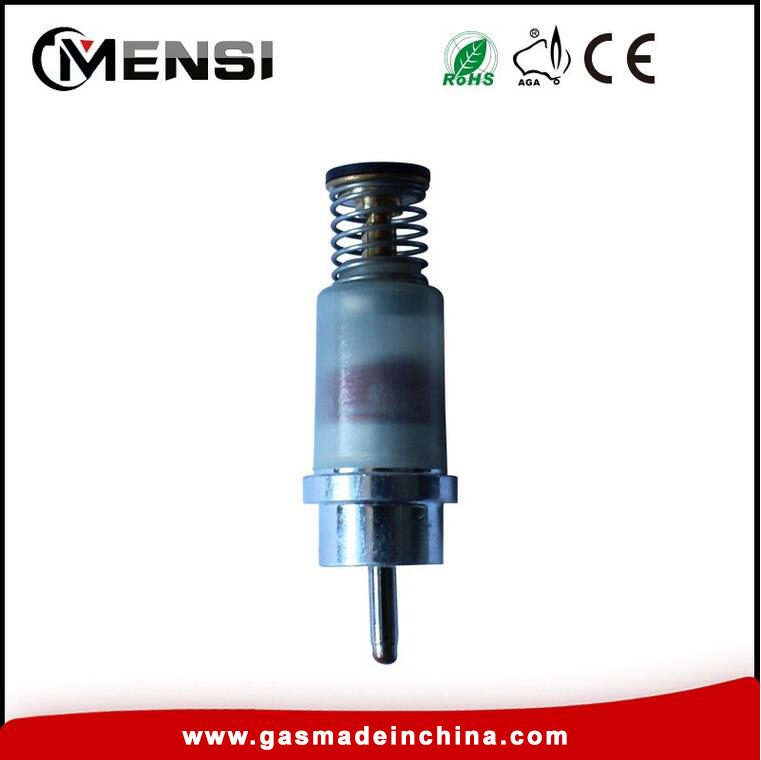

Valve magnet valve

Valve magnet valve

Product number:ESMG-008

Quick Overview: Installation 1. Valve installation unit should have the appropriate qualification and installation of the relevant gas pipeline construction specifications. 2. Valve should be installed in the indoor after the total intake valve for maintenance. 3. The valve body should be installed in the direction of the air flow, the valve coil can not be inverted, allowing horizontal and vertical installation. 4. Solenoid valve control line should be correct and reliable connection, the control line polarity: white line for the positive black line is negative, can not be reversed. 5. Pipeline purge, it is recommended to isolate the solenoid valve, so as not to damage the debris in the valve sealing material. 6. Pipeline in the test pressure test sealing performance, should first open the valve at the state of the solenoid valve. 7. Manually open the valve, should be in the valve inlet and outlet pressure balance operation. 8. Electric valve, avoid the wrong power supply, such as: the wrong polarity, the wrong voltage or long power, so as not to damage the electromagnetic coil.

Send Inquiry

PDF DownLoad

Product Description


1, after opening the box should first check the instructions, factory certificate, packing list is complete. And then check the list of product names, models are consistent, control nameplate is consistent with the order form. If the defect or does not match, should promptly contact with the manufacturers try to solve.
2, when the solenoid valve failure, in order to isolate and facilitate the timely maintenance, it is recommended to install bypass (bypass) device.
3, before installation, please thoroughly purge air bag and pipe, in order to avoid foreign body damage caused by solenoid valve failure.
4, the best way to install the solenoid gas valve is perpendicular to the horizontal pipe, coil up. When the conditions are not allowed, allow ± 30 ° tilt. Otherwise, can not guarantee normal use.
5, in a hazardous environment to prevent the spark may cause an explosion and other accidents, explosion-proof solenoid valve should be used.

6, high-pressure solenoid valve body on the arrow should be consistent with the medium flow.

Usage and charaters:

Application country: Europe, North America
Applicable gas families:LPG/propane/butane

Usage: gas grill, oven, stove
